Advance Playwright framework - build it folder by folder

mkdir advance-playwright-framework && cd advance-playwright-framework
npm init -y
npm i -D @playwright/test @types/node typescript dotenv
npx playwright install --with-deps
touch playwright.config.ts tsconfig.json .env .gitignore
mkdir -p src/{api,config,fixtures,modules,pages,testdata,tests,utils}

{
  "name": "advance-playwright-framework",
  "version": "1.0.0",
  "description": "TTA Advance Playwright Framework - TypeScript + POM + fixtures",
  "scripts": {
    "test":           "playwright test",
    "test:headed":    "playwright test --headed",
    "test:ui":        "playwright test --ui",
    "test:debug":     "playwright test --debug",
    "test:chromium":  "playwright test --project=chromium",
    "test:firefox":   "playwright test --project=firefox",
    "test:webkit":    "playwright test --project=webkit",
    "test:smoke":     "playwright test --grep @Smoke",
    "test:regression": "playwright test --grep @Regression",
    "test:p0":        "playwright test --grep @P0",
    "test:report":    "playwright show-report",
    "test:ci":        "playwright test --reporter=list,json",
    "lint":           "eslint src/**/*.ts",
    "lint:fix":       "eslint src/**/*.ts --fix",
    "format":         "prettier --write \"src/**/*.ts\"",
    "build":          "tsc",
    "clean":          "rm -rf dist test-results playwright-report tta-report"
  },
  "keywords": ["playwright", "typescript", "testing", "automation", "e2e"],
  "author": "The Testing Academy",
  "license": "ISC",
  "type": "commonjs",
  "devDependencies": {
    "@playwright/test": "^1.57.0",
    "@types/node":     "^25.0.6",
    "dotenv":          "^17.2.3",
    "typescript":      "^5.9.3"
  }
}

{
  "compilerOptions": {
    "target": "ES2020",
    "lib": ["ES2020", "DOM"],
    "module": "commonjs",
    "moduleResolution": "node",
    "strict": true,
    "esModuleInterop": true,
    "skipLibCheck": true,
    "resolveJsonModule": true,
    "outDir": "./dist",
    "baseUrl": ".",
    "paths": {
      "@pages/*":    ["src/pages/*"],
      "@modules/*":  ["src/modules/*"],
      "@utils/*":    ["src/utils/*"],
      "@fixtures/*": ["src/fixtures/*"],
      "@api/*":      ["src/api/*"],
      "@config/*":   ["src/config/*"],
      "@testdata/*": ["src/testdata/*"]
    }
  },
  "include": ["**/*.ts"],
  "exclude": ["node_modules", "dist"]
}

import { defineConfig, devices } from '@playwright/test';
import * as dotenv from 'dotenv';

dotenv.config();

export default defineConfig({
  testDir: './src/tests',
  timeout: 60000,
  expect: { timeout: 10000 },
  fullyParallel: true,
  forbidOnly: !!process.env.CI,
  retries: process.env.CI ? 2 : 0,
  workers:  process.env.CI ? 2 : 3,

  reporter: [
    ['./src/utils/CustomTTAReporter.ts'],
    ['html', { open: 'never' }],
    ['json', { outputFile: 'test-results/results.json' }],
    ['list'],
  ],

  use: {
    baseURL:    process.env.BASE_URL || 'https://app.thetestingacademy.com',
    screenshot: 'only-on-failure',
    video:      'retain-on-failure',
    trace:      'retain-on-failure',
  },

  projects: [
    { name: 'chromium',      use: { ...devices['Desktop Chrome'] } },
    { name: 'firefox',       use: { ...devices['Desktop Firefox'] } },
    { name: 'webkit',        use: { ...devices['Desktop Safari'] } },
    { name: 'mobile-chrome', use: { ...devices['Pixel 5'] } },
  ],
});

import { expect, Page } from '@playwright/test';

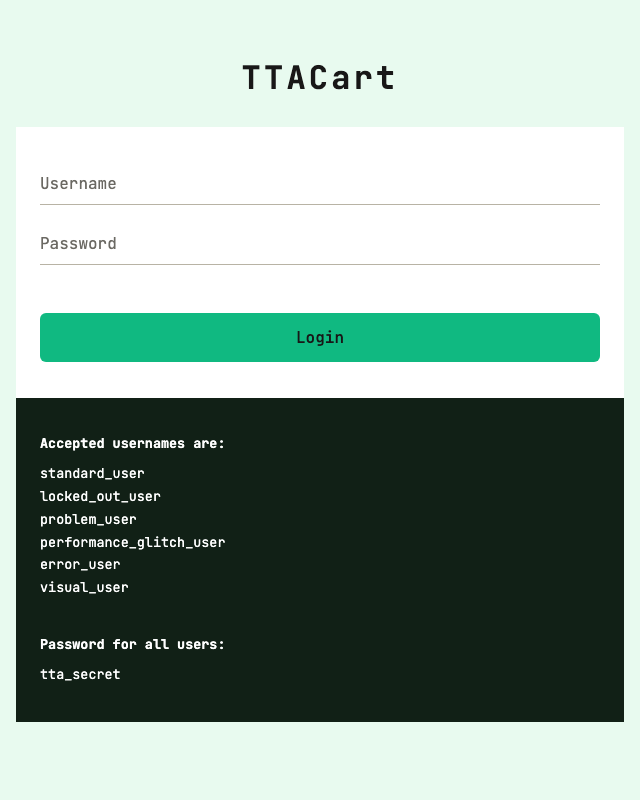

export class LoginPage {
  private page: Page;

  constructor(page: Page) {
    this.page = page;
  }

  // ============================================
  // LOCATORS (arrow functions return fresh Locator)
  // ============================================
  usernameInput        = () => this.page.locator('#username');
  passwordInput        = () => this.page.locator('#password');
  loginButton          = () => this.page.locator('button[type="submit"]');
  errorMessage         = () => this.page.locator('[data-testid="error-message"]');
  rememberMeCheckbox   = () => this.page.locator('#remember-me');
  forgotPasswordLink   = () => this.page.locator('a:has-text("Forgot Password")');
  signUpLink           = () => this.page.locator('a:has-text("Sign Up")');

  // ----- actions -----
  async navigate() {
    await this.page.goto('/playwright/multiple_element_filter.html');
  }
  async enterUsername(value: string) { await this.usernameInput().fill(value); }
  async enterPassword(value: string) { await this.passwordInput().fill(value); }
  async clickLogin()                  { await this.loginButton().click(); }
  async toggleRememberMe()            { await this.rememberMeCheckbox().click(); }
  async getErrorMessage()             { return (await this.errorMessage().textContent()) || ''; }

  // ----- assertions -----
  async expectOnLoginPage()         { await expect(this.page).toHaveURL(/multiple_element_filter/); }
  async expectUsernameVisible()     { await expect(this.usernameInput()).toBeVisible(); }
  async expectPasswordVisible()     { await expect(this.passwordInput()).toBeVisible(); }
  async expectErrorVisible()        { await expect(this.errorMessage()).toBeVisible(); }
  async expectLoginButtonEnabled()  { await expect(this.loginButton()).toBeEnabled(); }
}

import { Page, Locator } from '@playwright/test';

type Flex = string | Locator;

export class UtilElementLocator {
  private page: Page;
  private defaultTimeOut: number;

  constructor(page: Page, timeOut: number = 30000) {
    this.page = page;
    this.defaultTimeOut = timeOut;
  }

  private getLocator(locator: Flex): Locator {
    return typeof locator === 'string' ? this.page.locator(locator) : locator;
  }

  // actions
  async click(loc: Flex) { await this.getLocator(loc).click({ timeout: this.defaultTimeOut }); }
  async fill(loc: Flex, text: string) { await this.getLocator(loc).fill(text, { timeout: this.defaultTimeOut }); }
  async type(loc: Flex, text: string, delay = 50) {
    await this.getLocator(loc).pressSequentially(text, { delay, timeout: this.defaultTimeOut });
  }
  async clear(loc: Flex) { await this.getLocator(loc).clear({ timeout: this.defaultTimeOut }); }
  async selectByValue(loc: Flex, value: string) {
    await this.getLocator(loc).selectOption({ value }, { timeout: this.defaultTimeOut });
  }

  // reads
  async getText(loc: Flex)  { return (await this.getLocator(loc).innerText()).trim(); }
  async getValue(loc: Flex) { return await this.getLocator(loc).inputValue(); }
  async getAttr(loc: Flex, name: string) { return await this.getLocator(loc).getAttribute(name); }

  // waits
  async waitForVisible(loc: Flex, timeout = 5000) {
    try { await this.getLocator(loc).waitFor({ state: 'visible', timeout }); return true; }
    catch { return false; }
  }
  async waitForPageLoad(state: 'load' | 'domcontentloaded' | 'networkidle' = 'load') {
    await this.page.waitForLoadState(state);
  }
}

export enum LogLevel { DEBUG = 'DEBUG', INFO = 'INFO', WARN = 'WARN', ERROR = 'ERROR' }

export class Logger {
  private static logLevel: LogLevel = LogLevel.INFO;

  constructor(private context: string) {}

  static create(context: string) { return new Logger(context); }
  static setLogLevel(level: LogLevel) { Logger.logLevel = level; }

  private fmt(level: LogLevel, message: string) {
    return `[${new Date().toISOString()}] [${level}] [${this.context}] ${message}`;
  }

  info(m: string)  { console.info(this.fmt(LogLevel.INFO, m)); }
  warn(m: string)  { console.warn(this.fmt(LogLevel.WARN, m)); }
  error(m: string, e?: unknown) { console.error(this.fmt(LogLevel.ERROR, m), e || ''); }
  step(n: number, desc: string) { this.info(`Step ${n}: ${desc}`); }
}

{
  "validUsers": [
    {
      "id": "user-001",
      "username": "[email protected]",
      "password": "SecurePass123",
      "firstName": "Test",
      "lastName": "User",
      "role": "customer"
    },
    {
      "id": "user-002",
      "username": "[email protected]",
      "password": "AdminPass456",
      "firstName": "Admin",
      "lastName": "User",
      "role": "admin"
    },
    {
      "id": "user-003",
      "username": "[email protected]",
      "password": "PremiumPass789",
      "firstName": "Premium",
      "lastName": "Member",
      "role": "premium"
    }
  ],
  "invalidUsers": [
    { "username": "[email protected]",     "password": "wrongpassword", "expectedError": "Invalid credentials" },
    { "username": "[email protected]", "password": "anypassword",   "expectedError": "User not found" },
    { "username": "",                       "password": "somepassword",  "expectedError": "Username is required" },
    { "username": "[email protected]",        "password": "",               "expectedError": "Password is required" }
  ],
  "newUserTemplate": {
    "username": "newuser_{timestamp}@tta.dev",
    "password": "NewUserPass123",
    "firstName": "New",
    "lastName": "User"
  },
  "lockedUser": {
    "username": "[email protected]",
    "password": "LockedPass123",
    "expectedError": "Account is locked"
  }
}

export interface ValidUser {
  id: string;
  username: string;
  password: string;
  firstName: string;
  lastName: string;
  role: string;
}

export interface InvalidUser {
  username: string;
  password: string;
  expectedError: string;
}

export interface UsersData {
  validUsers: ValidUser[];
  invalidUsers: InvalidUser[];
  newUserTemplate: { username: string; password: string; firstName: string; lastName: string };
  lockedUser: { username: string; password: string; expectedError: string };
}

import { Page } from '@playwright/test';
import { LoginPage } from '../pages/LoginPage';
import { HomePage } from '../pages/HomePage';
import { Logger } from '../utils/Logger';

export class LoginModule {
  private page: Page;
  private loginPage: LoginPage;
  private homePage: HomePage;
  private log: Logger;

  constructor(page: Page) {
    this.page = page;
    this.loginPage = new LoginPage(page);
    this.homePage  = new HomePage(page);
    this.log = Logger.create('LoginModule');
  }

  async doLogin(username: string, password: string): Promise<boolean> {
    this.log.step(1, 'Navigate to login page');
    await this.loginPage.navigate();

    this.log.step(2, 'Enter username');
    await this.loginPage.enterUsername(username);

    this.log.step(3, 'Enter password');
    await this.loginPage.enterPassword(password);

    this.log.step(4, 'Click login button');
    await this.loginPage.clickLogin();

    this.log.info('Login successful');
    return true;
  }

  async attemptInvalidLogin(username: string, password: string): Promise<string> {
    await this.loginPage.navigate();
    await this.loginPage.enterUsername(username);
    await this.loginPage.enterPassword(password);
    await this.loginPage.clickLogin();
    await this.loginPage.expectErrorVisible();
    return await this.loginPage.getErrorMessage();
  }
}

import { test as base, Page } from '@playwright/test';
import { LoginPage } from '../pages/LoginPage';
import { HomePage } from '../pages/HomePage';
import { LoginModule } from '../modules/LoginModule';
import { config } from '../config';

export type TestFixtures = {
  loginPage: LoginPage;
  homePage: HomePage;
  loginModule: LoginModule;
  authenticatedPage: Page;
};

export const test = base.extend<TestFixtures>({
  loginPage:   async ({ page }, use) => { await use(new LoginPage(page)); },
  homePage:    async ({ page }, use) => { await use(new HomePage(page)); },
  loginModule: async ({ page }, use) => { await use(new LoginModule(page)); },

  // Pre-authenticated page - perform login once per test that requests it
  authenticatedPage: async ({ browser }, use) => {
    const context = await browser.newContext();
    const page = await context.newPage();

    const loginPage = new LoginPage(page);
    await loginPage.navigate();
    await loginPage.enterUsername(config.testUser.username);
    await loginPage.enterPassword(config.testUser.password);
    await loginPage.clickLogin();

    await use(page);
    await context.close();
  },
});

export { expect } from '@playwright/test';

# TTA practice host
BASE_URL=https://app.thetestingacademy.com
API_BASE_URL=https://app.thetestingacademy.com/api

# Default test credentials
[email protected]
TEST_PASSWORD=SecurePass123

# Timeouts
API_TIMEOUT=30000
DEFAULT_TIMEOUT=30000

# Logging
LOG_LEVEL=INFO

# Retry
RETRY_COUNT=3

import * as dotenv from 'dotenv';
dotenv.config();

export interface AppConfig {
  baseUrl: string;
  apiBaseUrl: string;
  apiTimeout: number;
  testUser: { username: string; password: string };
  logLevel: string;
  retryCount: number;
}

export const config: AppConfig = {
  baseUrl:     process.env.BASE_URL || 'https://app.thetestingacademy.com',
  apiBaseUrl:  process.env.API_BASE_URL || 'https://app.thetestingacademy.com/api',
  apiTimeout:  parseInt(process.env.API_TIMEOUT || '30000', 10),
  testUser: {
    username: process.env.TEST_USERNAME || '[email protected]',
    password: process.env.TEST_PASSWORD || 'SecurePass123',
  },
  logLevel:   process.env.LOG_LEVEL || 'INFO',
  retryCount: parseInt(process.env.RETRY_COUNT || '3', 10),
};

export function getEnvironmentConfig(env?: string): Partial<AppConfig> {
  const environment = env || process.env.NODE_ENV || 'development';

  switch (environment) {
    case 'production':
      return { baseUrl: 'https://app.thetestingacademy.com', retryCount: 5 };
    case 'staging':
      return { baseUrl: 'https://staging.thetestingacademy.com', retryCount: 3 };
    case 'development':
    default:
      return { baseUrl: 'https://app.thetestingacademy.com', retryCount: 2 };
  }
}

export default config;

import {
  FullConfig, FullResult, Reporter,
  Suite, TestCase, TestResult, TestStep,
} from '@playwright/test/reporter';
import * as fs from 'fs';

interface StepData {
  title: string; duration: number;
  status: 'passed' | 'failed' | 'skipped';
  screenshot?: string; error?: string;
}

class CustomTTAReporter implements Reporter {
  private outputFile = 'tta-report/index.html';
  private stats = { total: 0, passed: 0, failed: 0, skipped: 0 };

  onBegin(config: FullConfig, suite: Suite) {
    this.stats.total = suite.allTests().length;
  }

  onTestEnd(test: TestCase, result: TestResult) {
    if (result.status === 'passed')  this.stats.passed++;
    if (result.status === 'failed')  this.stats.failed++;
    if (result.status === 'skipped') this.stats.skipped++;
  }

  async onEnd(result: FullResult) {
    fs.mkdirSync('tta-report', { recursive: true });
    const html = `<!doctype html><html><head><title>TTA Report</title></head>
<body><h1>TTA Playwright Report</h1>
<p>Total: ${this.stats.total} | Pass: ${this.stats.passed} | Fail: ${this.stats.failed}</p>
</body></html>`;
    fs.writeFileSync(this.outputFile, html);
  }
}

export default CustomTTAReporter;

import { test, expect } from '../fixtures';
import usersData from '../testdata/users.json';
import { UsersData, InvalidUser } from '../testdata/types';

const typed = usersData as UsersData;
const validUser = typed.validUsers[0];
const invalidUsers: InvalidUser[] = typed.invalidUsers;

test.describe('@P1 @Regression @Login Login Feature', () => {

  test.describe('@P0 @Smoke Valid Login', () => {
    test('should login with valid credentials', async ({ loginModule, page }) => {
      await test.step('login + verify URL', async () => {
        await loginModule.doLogin(validUser.username, validUser.password);
        expect(page.url()).toContain('multiple_element_filter');
      });
    });
  });

  test.describe('@P1 @Regression Invalid Login', () => {
    test('shows error with bad credentials', async ({ loginModule }) => {
      const [u] = invalidUsers;
      const error = await loginModule.attemptInvalidLogin(u.username, u.password);
      expect(error).toContain(u.expectedError);
    });
  });

  test.describe('@P2 Login Page Elements', () => {
    test('login form is fully rendered', async ({ loginPage }) => {
      await loginPage.navigate();
      await loginPage.expectUsernameVisible();
      await loginPage.expectPasswordVisible();
      await loginPage.expectLoginButtonEnabled();
    });
  });
});

test.describe('@P0 @Smoke Login - via fixture', () => {
  test('authenticated page is ready to use', async ({ authenticatedPage }) => {
    await expect(authenticatedPage).toHaveURL(/multiple_element_filter/);
  });
});

[
  { "username": "standard_user",           "password": "tta_secret", "kind": "ok" },
  { "username": "locked_out_user",         "password": "tta_secret", "kind": "blocked" },
  { "username": "problem_user",            "password": "tta_secret", "kind": "broken-ui" },
  { "username": "performance_glitch_user", "password": "tta_secret", "kind": "slow" },
  { "username": "error_user",              "password": "tta_secret", "kind": "flaky" },
  { "username": "visual_user",             "password": "tta_secret", "kind": "visual" }
]

import { expect, Locator, Page } from '@playwright/test';
import { UtilElementLocator } from '../utils/UtilElementLocator';

export class LoginPage {
  private readonly u: UtilElementLocator;
  readonly username: Locator;
  readonly password: Locator;
  readonly loginBtn: Locator;
  readonly errorBanner: Locator;

  constructor(private page: Page) {
    this.u = new UtilElementLocator(page);
    this.username    = page.getByTestId('username');
    this.password    = page.getByTestId('password');
    this.loginBtn    = page.getByTestId('login-button');
    this.errorBanner = page.getByTestId('error');
  }

  async open() {
    await this.page.goto('/playwright/ttacart/index.html');
  }

  async loginAs(username: string, password: string): Promise<void> {
    await this.u.fill(this.username, username);
    await this.u.fill(this.password, password);
    await this.u.click(this.loginBtn);
  }

  async expectErrorContains(text: string): Promise<void> {
    await expect(this.errorBanner).toContainText(text);
  }
}

async addToCart(productId: string): Promise<void> {
  await this.page.getByTestId(`add-to-cart-${productId}`).click();
}

async cartCount(): Promise<number> {
  const badge = this.page.getByTestId('shopping-cart-badge');
  if (!(await badge.isVisible())) return 0;
  return Number(await badge.innerText());
}

async openCart(): Promise<void> {
  await this.page.getByTestId('shopping-cart-link').click();
}

import { test, expect } from '../fixtures/test-base';

test('@e2e standard_user buys two items', async ({
  page, loginPage, inventoryPage, cartPage, checkoutOne, checkoutTwo, completePage,
}) => {

  // 1) login
  await loginPage.open();
  await loginPage.loginAs('standard_user', 'tta_secret');
  await expect(page).toHaveURL(/inventory\.html/);

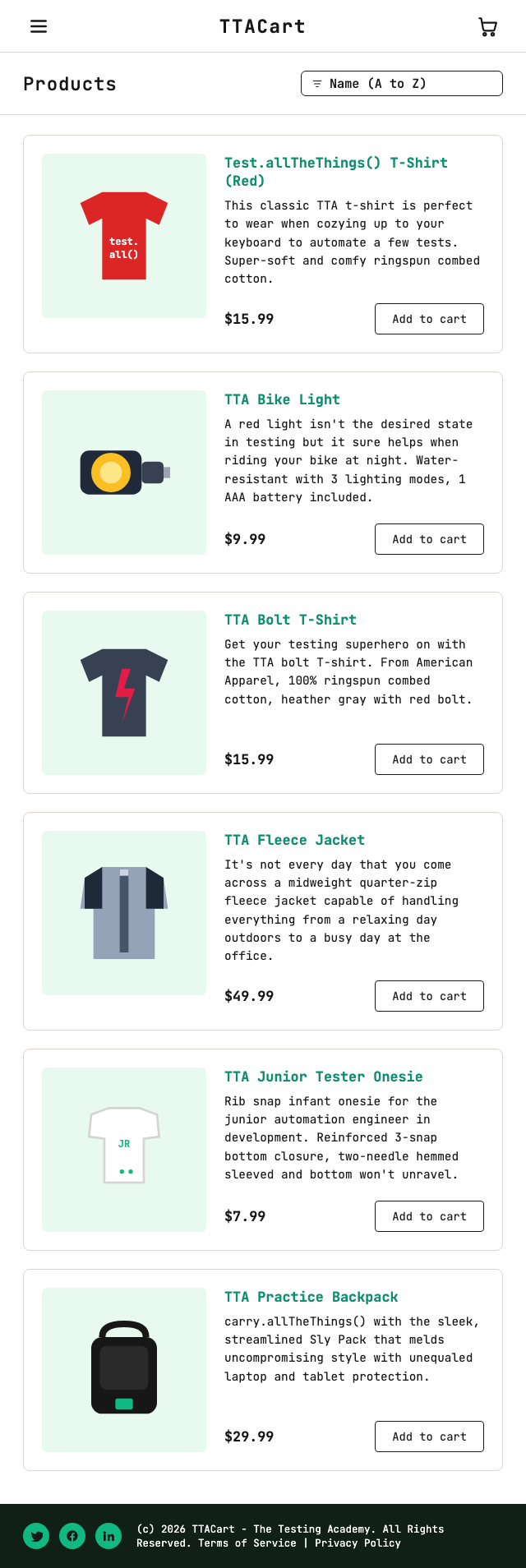

  // 2) add 2 items, assert cart badge

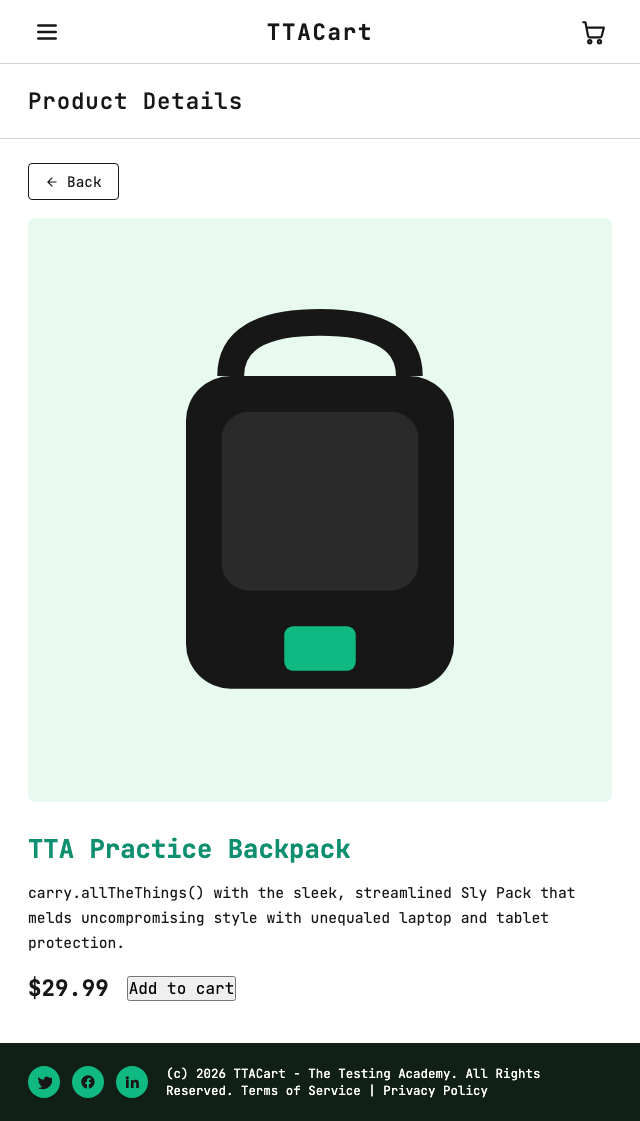

  await inventoryPage.addToCart('tta-practice-backpack');
  await inventoryPage.addToCart('tta-bike-light');
  expect(await inventoryPage.cartCount()).toBe(2);

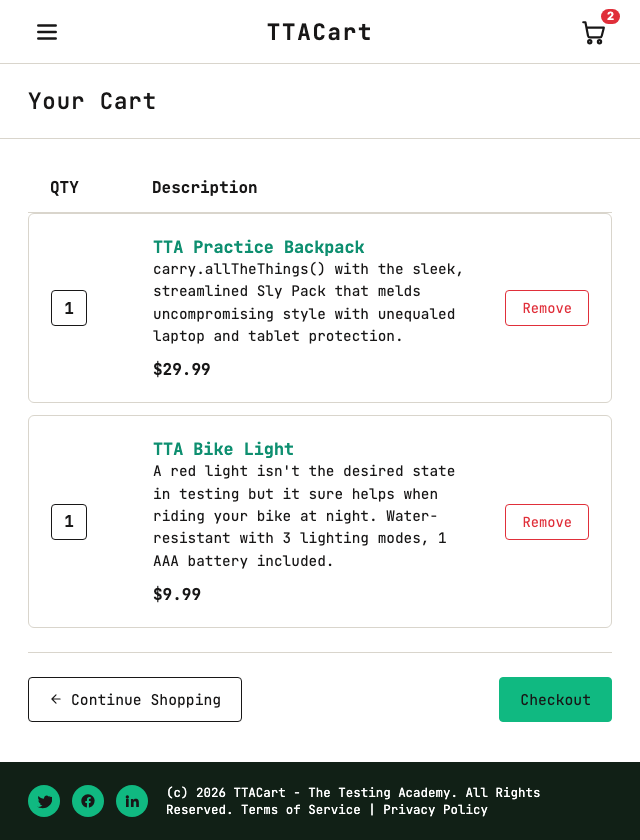

  // 3) cart -> checkout step 1
  await inventoryPage.openCart();
  await cartPage.assertLoaded();
  await cartPage.checkout();

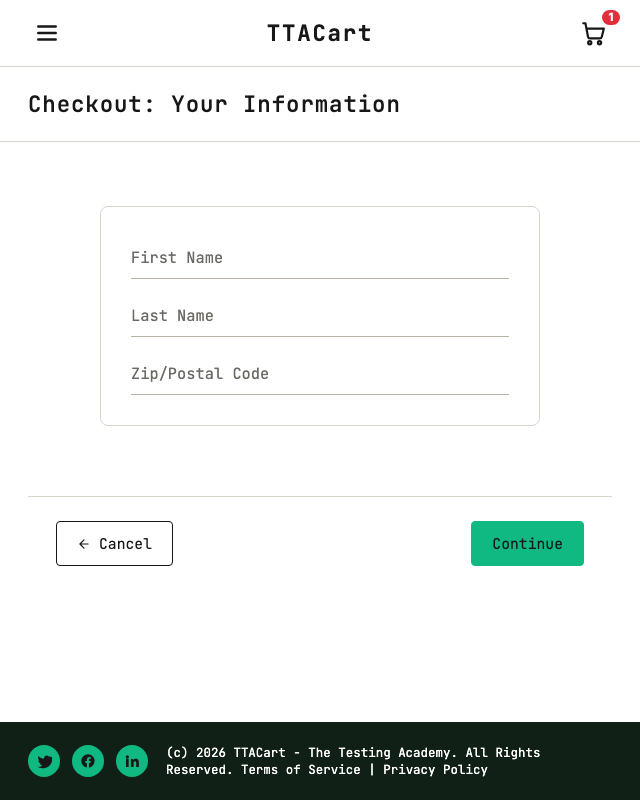

  // 4) guest details
  await checkoutOne.fillGuest({ firstName: 'Aarav', lastName: 'Sharma', postalCode: '560001' });
  await checkoutOne.continue();

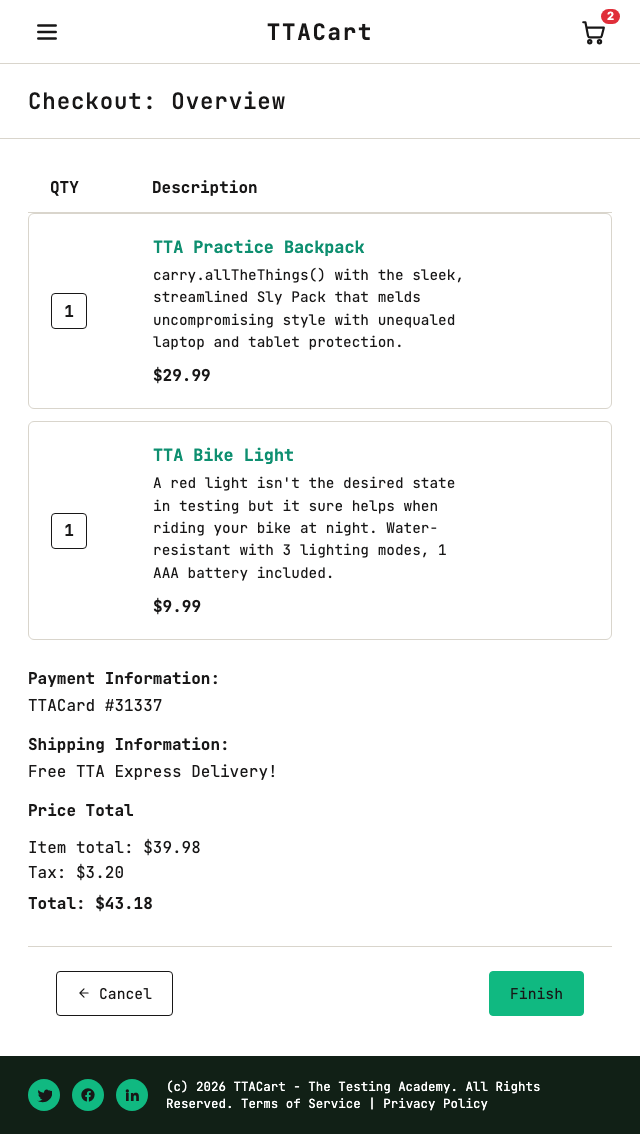

  // 5) overview totals math
  const subtotal = await checkoutTwo.subtotal();   // 29.99 + 9.99
  const tax      = await checkoutTwo.tax();        // 8% of subtotal
  const total    = await checkoutTwo.total();      // subtotal + tax
  expect(total).toBeCloseTo(subtotal + tax, 2);

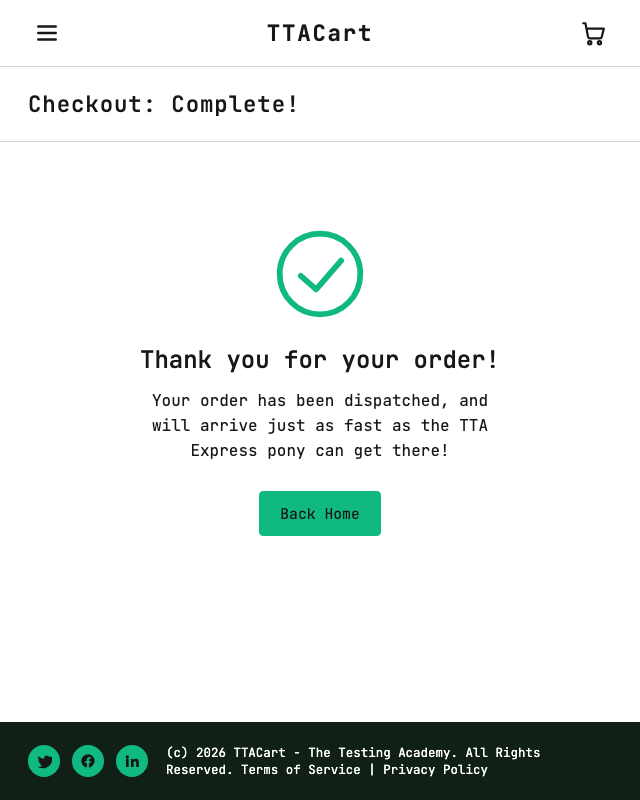

  // 6) finish + assert thank-you
  await checkoutTwo.finish();
  await expect(page).toHaveURL(/checkout-complete\.html/);
  await expect(completePage.headerText()).resolves.toContain('Thank you');
});

test('@regression locked_out_user sees the locked-out error', async ({ loginPage }) => {
  await loginPage.open();
  await loginPage.loginAs('locked_out_user', 'tta_secret');
  await loginPage.expectErrorContains('locked out');
});

name: TTACart Playwright Tests

on:
  push:        { branches: [ttacart] }
  pull_request: { branches: [main, ttacart] }
  workflow_dispatch:
    inputs:
      test_tag:
        description: 'Tag to run (@smoke / @regression / @e2e)'
        required: false
        default: ''

env:
  CI: true
  NODE_VERSION: '20'

jobs:
  test:
    name: Run Tests
    runs-on: ubuntu-latest
    timeout-minutes: 30
    strategy:
      fail-fast: false
      matrix: { shard: [1, 2, 3, 4] }

    steps:
      - uses: actions/checkout@v4
      - uses: actions/setup-node@v4
        with: { node-version: '${{ env.NODE_VERSION }}', cache: 'npm' }
      - name: Install deps
        run: npm ci
      - name: Install Playwright browsers
        run: npx playwright install --with-deps chromium
      - name: Run shard ${{ matrix.shard }}/4
        run: |
          if [ -n "${{ github.event.inputs.test_tag }}" ]; then
            npx playwright test --shard=${{ matrix.shard }}/4 --grep "${{ github.event.inputs.test_tag }}"
          else
            npx playwright test --shard=${{ matrix.shard }}/4
          fi
      - name: Upload test results
        if: always()
        uses: actions/upload-artifact@v4
        with:
          name: playwright-report-shard-${{ matrix.shard }}
          path: |
            playwright-report/
            test-results/
            tta-report/
          retention-days: 30

  merge-reports:
    needs: test
    runs-on: ubuntu-latest
    if: always()
    steps:
      - uses: actions/checkout@v4
      - uses: actions/setup-node@v4
        with: { node-version: '${{ env.NODE_VERSION }}', cache: 'npm' }
      - run: npm ci
      - uses: actions/download-artifact@v4
        with: { path: all-reports, pattern: playwright-report-shard-* }
      - name: Merge HTML reports
        run: npx playwright merge-reports --reporter html ./all-reports
      - uses: actions/upload-artifact@v4
        with:
          name: playwright-report-merged
          path: playwright-report/
          retention-days: 30

# Official Playwright image with all browsers preinstalled
FROM mcr.microsoft.com/playwright:v1.57.0-jammy

WORKDIR /app
ENV CI=true
ENV NODE_ENV=test
ENV PLAYWRIGHT_BROWSERS_PATH=/ms-playwright

COPY package*.json ./
RUN npm ci

COPY . .
RUN npm run build
RUN mkdir -p /app/test-results /app/playwright-report /app/tta-report

CMD ["npx", "playwright", "test"]

# Build:  docker build -t tta-playwright .
# Run:    docker run --rm -v $(pwd)/test-results:/app/test-results tta-playwright
# Shard:  docker run --rm tta-playwright npx playwright test --shard=1/4
